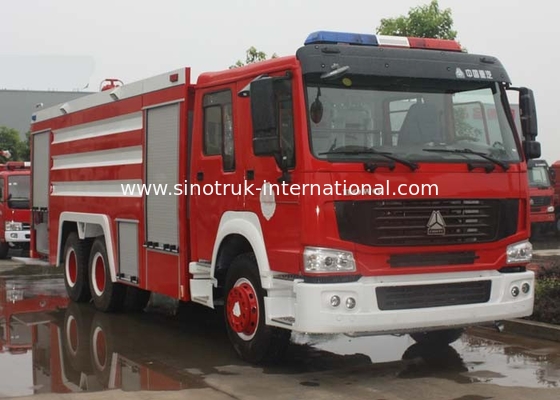

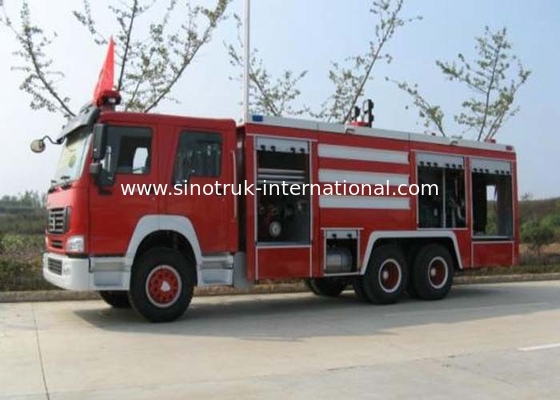

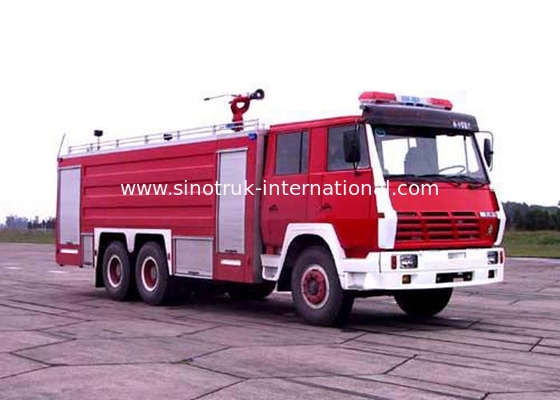

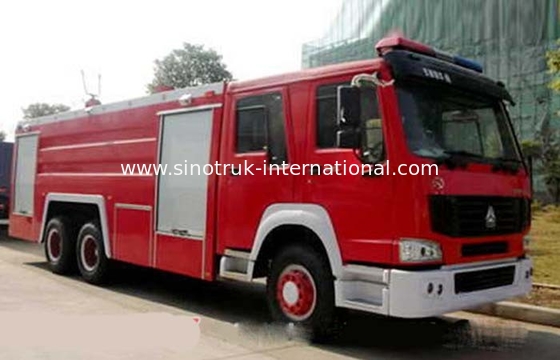

Compact Structure Emergency Fire Engine Vehicles / Firefighter Trucks

Compact Structure Emergency Fire Engine Vehicles / Firefighter Trucks

    • Compact Structure Emergency Fire Engine Vehicles / Firefighter Trucks
    • Compact Structure Emergency Fire Engine Vehicles / Firefighter Trucks
    • Compact Structure Emergency Fire Engine Vehicles / Firefighter Trucks
    • Compact Structure Emergency Fire Engine Vehicles / Firefighter Trucks
  • Compact Structure Emergency Fire Engine Vehicles / Firefighter Trucks

    Ürün ayrıntıları:

    Place of Origin: China
    Marka adı: SINOTRUK HOWO
    Sertifika: ISO/3C/BV/IFA/SGS
    Model Number: ZZ1257N4341W

    Ödeme & teslimat koşulları:

    Minimum Order Quantity: 1 Unit
    Fiyat: Negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Şimdi başvurun
    Detaylı ürün tanımı
    Product Name: Fire Fighting Truck Model: ZZ1257N4341W
    Drive type: 6X4 LHD Emission Standard: Euro2
    Engine: WD615.69, 336HP Tank body capacity: 15-20CBM

    Fire Fighting Truck SINOTRUK HOWO 15-20CBM 336HP for Fire control or landscaping



    Description:



    Fire Fighting Truck SINOTRUK HOWO 15-20CBM 336HP for Fire control or landscaping

    The fire truck, also known as the fire engine, is specially used for fire or other emergency using vehicles. Fire engines can be classified according to the functions of water tank fire truck, foam fire truck,  agricultural fire truck, fire fighting and sprinkling truck and other special using vehicles. Fire engines  usually stationed at the fire station, met the alarm by firemen to drive the scene. SINOTRUK HOWO  series fire truck chassis modified liquid carrying capacity of 8 tons, 12 tons, 16 tons of water tankers,  foam fire truck and other products.





    Specification:



    Fire Fighting Truck SINOTRUK HOWO 15-20CBM 336HP for Fire control or landscaping

    Chassis Model

    ZZ1257N4341W

    Drive Type

    6×4

    Engine

    WD615.69, 336HP

    Cabin

    HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

    Transmission

    HW13710(10 forwards & 2 reverses)

    Front Axle

    HF9(1X9 Tons)

    Driving Axle

    HC16(1X16 Tons)

    Clutch

    hydraulically operating with air assistance

    Rim/ Tire

    11.00R20, Radial tyre

    Wheel base

    4300+1350(mm)

    Capacity of tank body

    15-20CBM

    Fire pump

    CB10/60(65mm)

    Flow quantity

    low pressure 60L/S  middle pressure :30 L/s

    Fire monitor

    PS50 working rage(water ≥65m)

    Overall dimension

    9800×2600×3710mm

    The curb weight

    14750(Kg)

    Gross weight

    25000 kg

    Max. speed

    95km/h

    Color

    White, red, green, golden and so on.


    Applications:



    Fire Fighting Truck with fire trucks and sprinkler functions, range and pressure can reach the same

    level as the fire truck, suitable for landscaping, fire sprinkler, fire fighting, mine dust, living area fire,

    power  plant fire.



    Competitive Advantage:



    1) SINOTRUK Fire Fighting Truck have strong power, short acceleration time, compact structure,  occupant space, low floor, convenient to staff on and off.

    2) Cab space is spacious, can take the 8-10 person, equipped with a dedicated fire fighters.

    3) Equipped with better communication equipment, such as GPS, car radio, alarm, 12/24v power outlet.

    4) The big size of the rocker switch, anti slip handrails, step lamp, car lamp switch, brings more

    convenient to firefighters.

    5) with all kinds of truck model, which can fulfill your requirement
    6) the key parts adopt the world's top technology products
    7) based on strong technical support and top level technology make the trucks with high quality and

    more reliable
    8) competitive price, cost-effective
    9) quick and efficient spare parts supply bring you more convenient

    10) fast delivery time, we can arrange production according to your needs exactly and quickly

    11) professional import and export dealing procedure, make customs clearance more high efficiency



    Compact Structure Emergency Fire Engine Vehicles / Firefighter TrucksCompact Structure Emergency Fire Engine Vehicles / Firefighter Trucks
