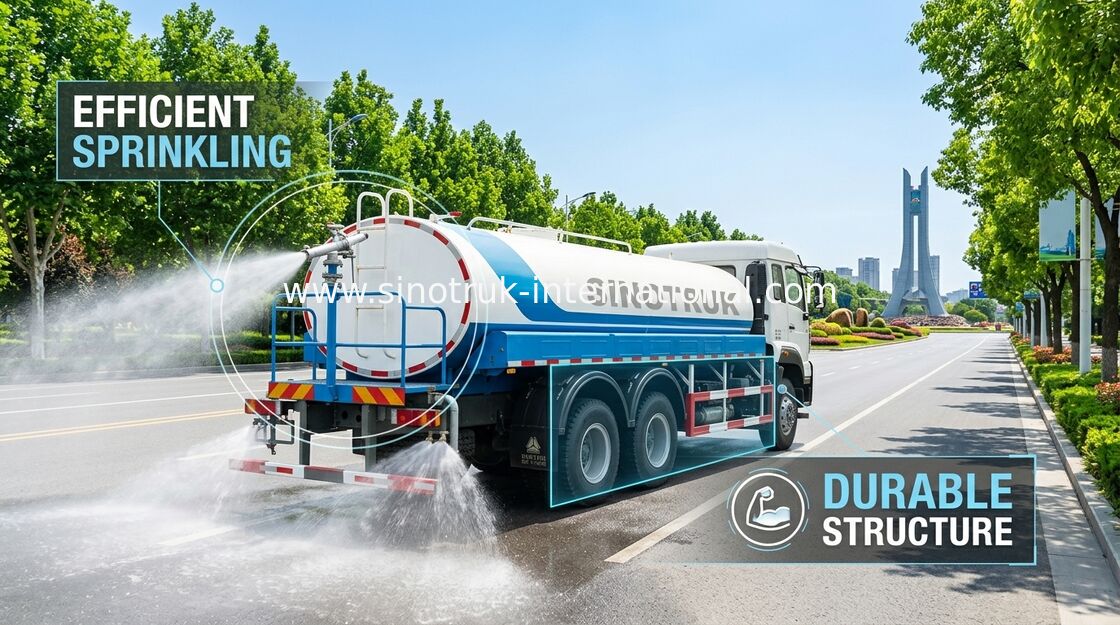

6000 Gallon Water Tank Truck Hydraulically Operated Air Assistance SINOTRUK HOWO

6000 Gallon Water Tank Truck Hydraulically Operated Air Assistance SINOTRUK HOWO

  • 6000 Gallon Water Tank Truck Hydraulically Operated Air Assistance SINOTRUK HOWO
  • 6000 Gallon Water Tank Truck Hydraulically Operated Air Assistance SINOTRUK HOWO
  • 6000 Gallon Water Tank Truck Hydraulically Operated Air Assistance SINOTRUK HOWO
  • 6000 Gallon Water Tank Truck Hydraulically Operated Air Assistance SINOTRUK HOWO
6000 Gallon Water Tank Truck Hydraulically Operated Air Assistance SINOTRUK HOWO
Ürün ayrıntıları:
Place of Origin: China
Marka adı: SINOTRUK HOWO
Sertifika: ISO/3C/BV/IFA/SGS
Model Number: ZZ1257N4641W
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 Unit
Fiyat: USD41000-USD41500/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
İletişim
Detaylı ürün tanımı
Product Name: Water Tank Truck Model: ZZ1257N4641W
Drive type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.69, 336HP Tank body capacity: 16-25CBM
Vurgulamak:

construction water trucks

,

construction water truck

6000Gallon Water Tank Truck Hydraulically Operating Air Assistance SINOTRUK HOWO



Description:



6000Gallon Water Tank Truck Hydraulically Operating Air Assistance SINOTRUK HOWO

Which can choose more truck chassis brand, such as HOWO, HOWO A7, Golden prince, STYER and so on. SINOTRUK Water tank truck is widely used in city landscaping, road or ming site dusty restrain.



Working principle is truck engine driven gearbox, gearbox mounted power take-off drive

sprinkler pumps, sprinkler pump produces the main driving force, inside the tank of

liquid through the pipe to spray out.



Before the spray sprinkle, is arranged in front of the duck shaped nozzle or round blunt mouth, mounted behind the open sprinkler nozzle or shower nozzle of cylinder, at the back of the work platform, equipped with water cannons.



Self suction height: less than or equal to 7m, sprinkler width: is equal to or more than 20m, maximum range: greater than or equal to 28m; adjusting the pillars, the range is more than or equal to 28m; also can be adjusted into a mist, a range of equal to or more than 5m.







Specification:



6000Gallon Water Tank Truck Hydraulically Operating Air Assistance SINOTRUK HOWO

Chassis Model

ZZ1257N4641W

Drive Type

6×4

Engine

WD615.69, 336HP

Cabin

HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

Transmission

HW15710(10 forwards & 2 reverses)

Front Axle

HF9(1X9 Tons)

Driving Axle

HC16(1X16 Tons)

Clutch

hydraulically operating with air assistance

Rim/ Tire

11.00R20, Radial tyre

Wheel base

4625+1350(mm)

Capacity of tank body

15-25CBM

Spraying width of travel

14.8m

Spraying height

≧30m

Water sucking depth

≧4m

Overall dimension

9920×2496×3550mm

The curb weight

15180(Kg)

Gross weight

25000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.


Applications:



The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and

dust covering in large-medium-scale cities.



Competitive Advantage:



1) fast delivery time, we can arrange production according to your needs exactly and quickly

2) professional import and export dealing procedure, make customs clearance more high efficiency

3) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees

flowers and plants

4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

5) High pressure, wide range of spraying good flushing effect

6) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation

7) Pneumatic control and manual control system can realize two functions

8) with all kinds of truck model, which can fulfill your requirement
9) the key parts adopt the world's top technology products
10) based on strong technical support and top level technology make the trucks with high quality and

more reliable

11) competitive price, cost-effective
12) quick and efficient spare parts supply bring you more convenient
