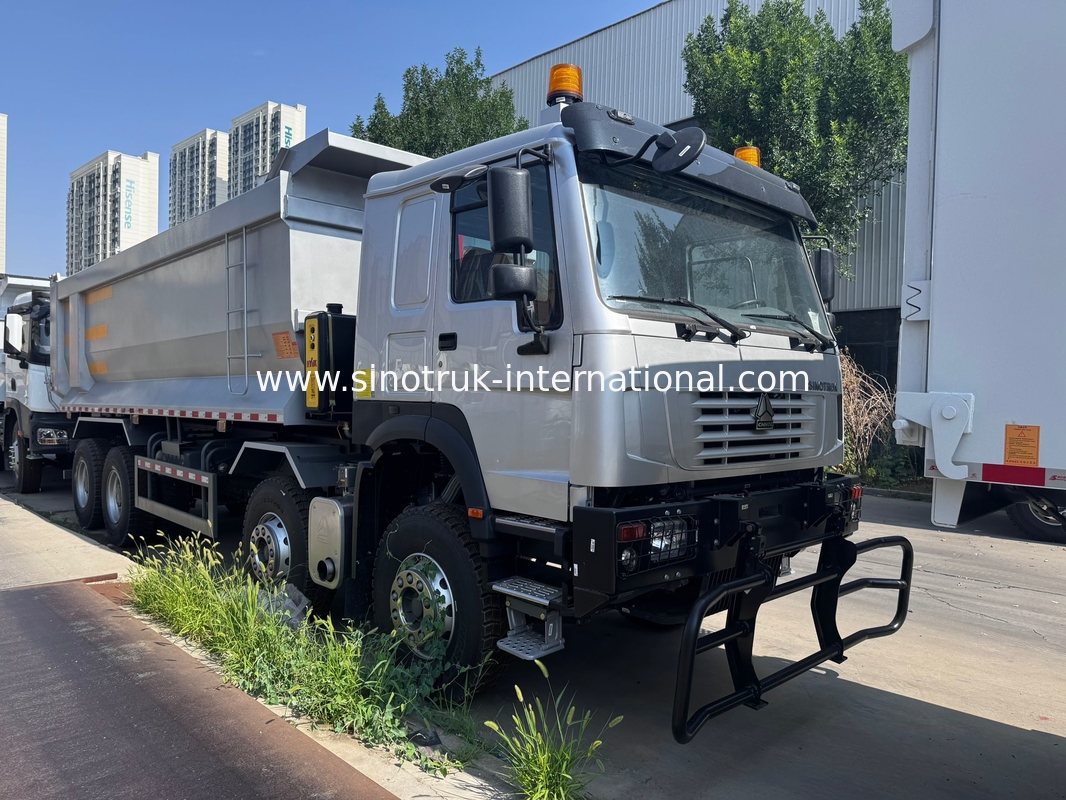

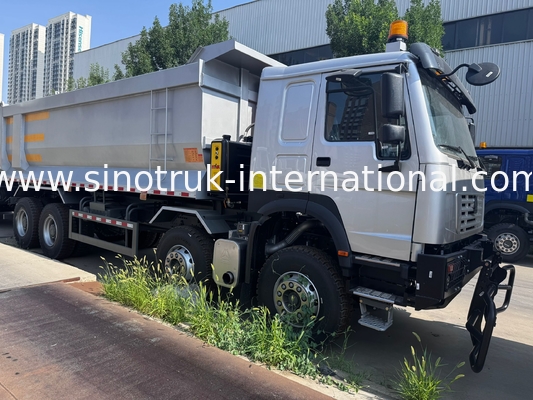

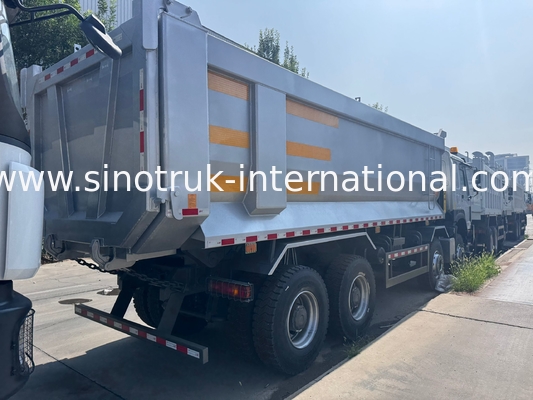

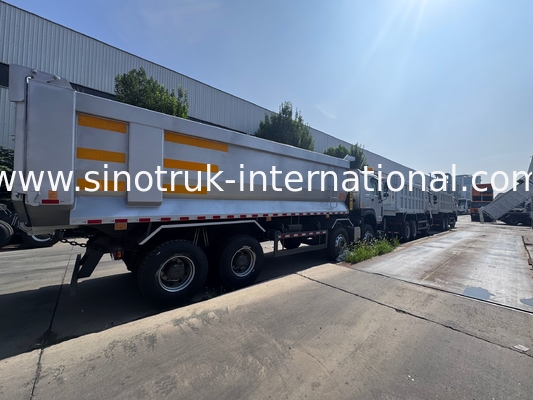

SINOTRUK HOWO 371HP 8X4 Tipper Dump Truck Construction Old Front Face Military Bumper For Mining Areas Two Warning Lights U Type Container

SINOTRUK HOWO 371HP 8X4 Tipper Dump Truck Construction Old Front Face Military Bumper For Mining Areas Two Warning Lights U Type Container

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: SINOTRUK HOWO
Sertifika: ISO/3C/BV/IFA/SGS
Model numarası: ZZ3317N3867N1H
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 Birim
Fiyat: USD48000-USD52000/UNIT)negotiation
Ambalaj bilgileri: Çıplak veya Roro veya toplu gemide Ağda
Teslim süresi: Peşin ödemenizi aldıktan sonra 25 iş günü
Ödeme koşulları: L/C,T/T,Western Union
Yetenek temini: Ayda 3.000 birim
İletişim
Detaylı ürün tanımı
Ürün Adı: Damperli Damperli Kamyon Model: ZZ3317N3867N1H
Sürücü Türü: LHD 8X4 emisyon standardı: Avro 2
Motor: WD615.47 371 HP (Euro II) Kargo Gövdesi: 7800 × 2300 × 1500 (mm), dip: 8mm, yan: 6mm
Yükleme kapasitesi: 40-50 Ton
Vurgulamak:

8X4 Tipper Dump Truck

,

Mining Areas Tipper Dump Truck

,

SINOTRUK HOWO Tipper Dump Truck

SINOTRUK HOWO 371HP 8X4 Tipper Dump Truck Construction Old Front Face Military Bumper For Mining Areas Two warning lights U Type container

Description:

The product has reliable structure and high bearing capacity

Load 30-60 tons, power 266HP-420HP, reliable performance, wide range of application.


This model can meet the requirements of severe environment like construction site and

mining area.which can fullfiled  you of short distance transportation of mining rock and

soil as well as engineering construction.



Specifications:



Tipper Dump Truck SINOTRUK HOWO A7 8X4 for Construction ZZ3317N3867N1H

Model ZZ3317N3867N1H
Drive Type 8X4
Engine

WD615.47,371 HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin Old front face(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 2×VGD95 ( 9.5 Tons)
Driving Axle HC16, 16Tons
Steering BOSCH hydraulic steering with power assistance.
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 10910×2496×3490(mm)
Cargo body 7800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 15300(Kg)
Gross weight 31000(Kg)
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:


Which is used in Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.


Competitive Advantage:


1) Various types of trucks to meet your needs
2) The world's top technology products are adopted for key components
3) Based on strong technical support and top technology, make the truck higher quality and more reliable

4) Optimized cargo structure, light weight, high rigidity, large load capacity

5) Adopt high strength steel, long service life

6) The optimized sealing structure has better sealing effect.

7) Intelligent hydraulic control system, avoid misoperation, with higher safety and operation efficiency.

8) A variety of box structure and equipment selection

9) Low fuel consumption
10) The engine is strong enough

11) Competitive price, cost-effective
12) Fast and efficient spare parts supply, bring you more convenience
13) Fast delivery time, we can accurately and quickly arrange production according to your needs

14) Professional import and export transaction procedures make customs clearance more efficient
