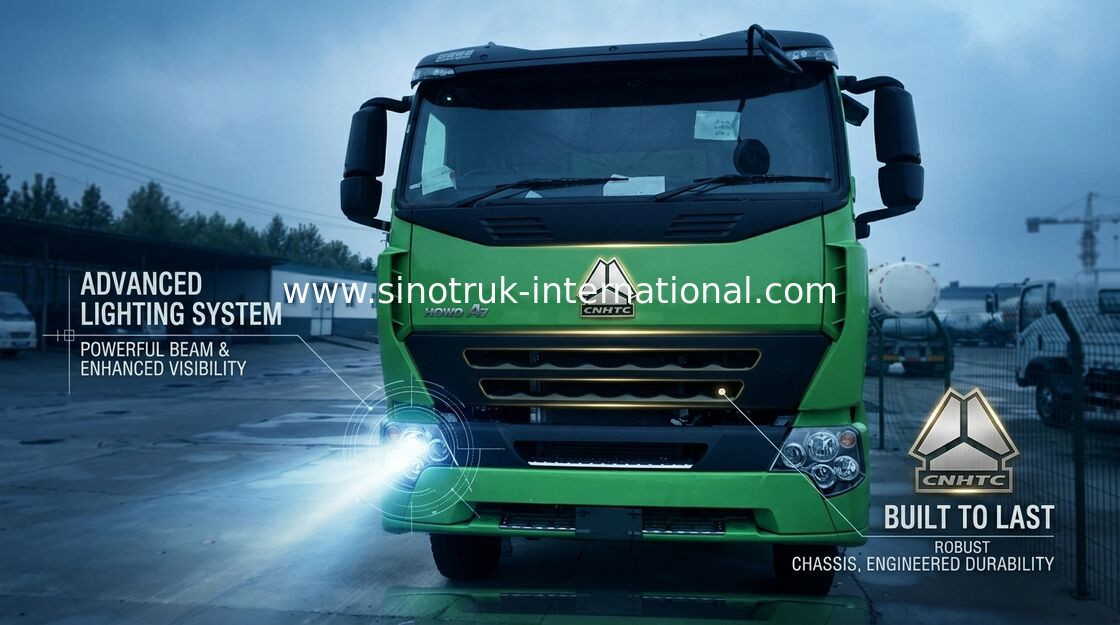

10 Wheels Lemon Green Tipper Dump Truck , Low Fuel Consumption Heavy Dump Truck

10 Wheels Lemon Green Tipper Dump Truck , Low Fuel Consumption Heavy Dump Truck

  • 10 Wheels Lemon Green Tipper Dump Truck , Low Fuel Consumption Heavy Dump Truck
  • 10 Wheels Lemon Green Tipper Dump Truck , Low Fuel Consumption Heavy Dump Truck
  • 10 Wheels Lemon Green Tipper Dump Truck , Low Fuel Consumption Heavy Dump Truck
  • 10 Wheels Lemon Green Tipper Dump Truck , Low Fuel Consumption Heavy Dump Truck
10 Wheels Lemon Green Tipper Dump Truck , Low Fuel Consumption Heavy Dump Truck
Ürün ayrıntıları:
Place of Origin: China
Marka adı: SINOTRUK HOWO A7
Sertifika: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257N4147N1
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 Unit
Fiyat: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
İletişim
Detaylı ürün tanımı
Product Name: Tipper Dump Truck Model: ZZ3257N4147N1
Drive type: RHD 6X4 Emission Standard: Euro 2
Engine: WD615.47, 371HP Cargo body: 6000*2300*1500mm
Loading capacity: 30-40tons Cabin: A7-P
Vurgulamak:

heavy dump truck

,

sinotruk howo dump truck

HOWO A7 Dump Truck 30 - 40tons RHD 10 wheels Lemon Green color for Mining business



Description:

HOWO A7 Dump Truck 30 - 40tons RHD 10 wheels Lemon Green color for Mining business

The design of the new China's D12 engine series, is currently the most representative of the heavy truck engine, the power range of 340-460Ps.



China CNHTC developed a series of new technology, has achieved results significantly, the D12 engine has good maneuverability. The large displacement, large power from low idling start makes the vehicle power, at the same time, its wide speed range, which makes the power constant and maximum torque value. This characteristic determine the perfect D12 engine fuel economy and driving performance.

Superb manufacturing and assembly process to make the engine overhaul mileage in more than 1 million kilometers, effectively solve the problems of other similar models in the country after sales failure.



In order to meet the needs of different customers, Chinese heavy truck also tailored D10 series engine for HOWO-A7 (270PS-380PS) using.D10 series engine technology innovation first domestic turbocharger. In the application of the technology to the intake and exhaust system produces substantial changes, the intake of the vehicle exhaust is smooth, concise, "lung function effect is more prominent, to better enhance the fuel economy.

D10, D12 two engines are to meet the national 3 emission standards, with the Euro 4 and 5 of the country's technical potential.





Specifications:




Dump Truck SINOTRUK HOWO A7 Front Lifting Hydraulic system 30 - 40tons RHD 6X4
Model ZZ3257N3847N1
Drive Type 8×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

 air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1)competive price, cost-effective
2)quick and efficient spare parts supply bring you more convenient

3)low fuel consumption
4) strong enough engine

5)Optimized cargo body structure,light weight,high rigidity,large loading capacity

6)Using the high strength steel,it has long service life

7)Optimized the sealing structure has the better sealing effect.

8)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

running efficiency.

9)Multiple box structures and device selections

10)with all kinds of truck model, which can fulfil your requirement
11)the key parts adopt the world's top technology products
12)based on strong technical support and top level technology make the trucks with high

quality and more reliable

13)fast delivery time, we can arange production according to your needs exactly and

quickly

14) professional import and export dealing precedure, make customs clearance more high efficiency



10 Wheels Lemon Green Tipper Dump Truck , Low Fuel Consumption Heavy Dump Truck 010 Wheels Lemon Green Tipper Dump Truck , Low Fuel Consumption Heavy Dump Truck 1
