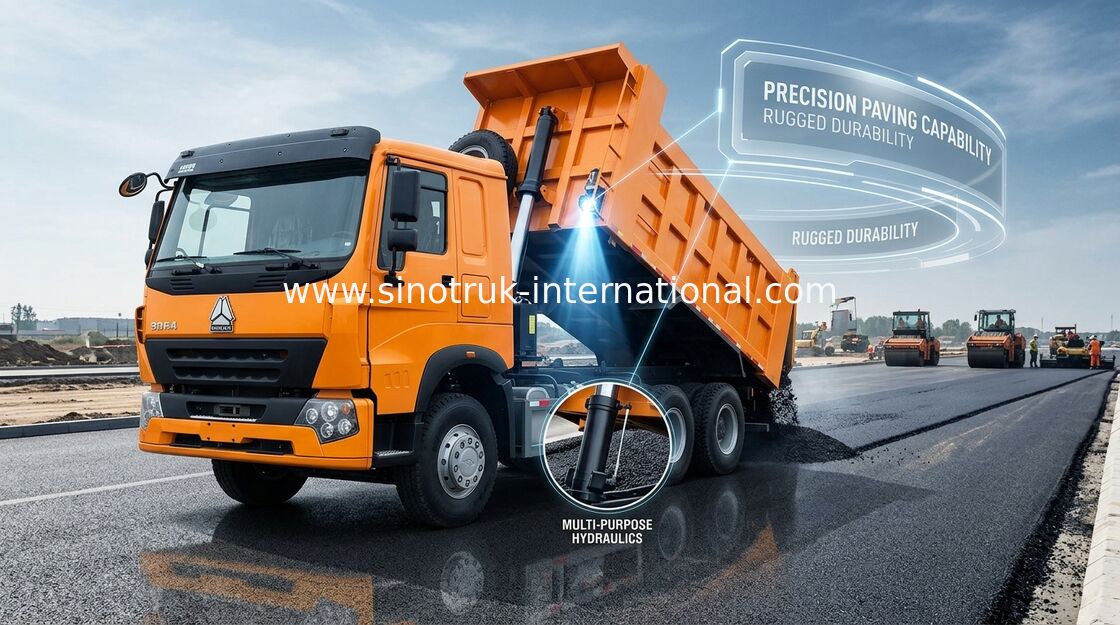

Euro 2 Standard 10 Wheels Tipper Dump Truck 30 - 40 Tons For Loading Sand / Stones

Euro 2 Standard 10 Wheels Tipper Dump Truck 30 - 40 Tons For Loading Sand / Stones

  • Euro 2 Standard 10 Wheels Tipper Dump Truck 30 - 40 Tons For Loading Sand / Stones
  • Euro 2 Standard 10 Wheels Tipper Dump Truck 30 - 40 Tons For Loading Sand / Stones
  • Euro 2 Standard 10 Wheels Tipper Dump Truck 30 - 40 Tons For Loading Sand / Stones
  • Euro 2 Standard 10 Wheels Tipper Dump Truck 30 - 40 Tons For Loading Sand / Stones
Euro 2 Standard 10 Wheels Tipper Dump Truck 30 - 40 Tons For Loading Sand / Stones
Ürün ayrıntıları:
Place of Origin: China
Marka adı: SINOTRUK HOKA
Sertifika: ISO/3C/BV/IFA/SGS
Model Number: ZZ3255N3646B1
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 Unit
Fiyat: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
İletişim
Detaylı ürün tanımı
Product Name: Tipper Dump Truck Model: ZZ3255N3646B1
Drive type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.69, 336HP Cargo body: 5600*2300*1500mm
Loading capacity: 30-40tons Transmission: HW15710
Steering: ZF Brand Hydraulic cylinder: Euro brand
Vurgulamak:

heavy dump truck

,

sinotruk howo dump truck

Tipper Truck SINOTRUK LHD 371HP 10 wheels 30 - 40tons for loading sand or stones



Description:

Tipper Truck SINOTRUK LHD 371HP 10 wheels 30 - 40tons for loading sand or stones

HOKA brand is the Leader of Heavy Duty Truck Industry Driving King On The Road.

Pedal type locking steering wheel can be based on the driver's control habits and body for a full range of height, angle adjustment.

The new multi-function steering wheel equipped with electronic control keys to control the audio system and GSM phone.



Automatic air conditioning, warm air conditioner has a unique integrated design; at first, the unique design of the ventilation system, excellent air circulation performance, can be effectively eliminated, in addition to smell, in the cab closed state, still can keep the air clean; cold and warm air channel directly to both sides of the door, defrosting, defrosting is fast and efficient.



At the same time the rest of the two people on the lower berth. Under the sleeper can be split into two seats and a small table, such as living on the sleeper. Create a unique shape, widening the bottom with the sleeper, opened the ladder.



The table plate can be used for vehicle condition information displayed by the high brightness LED lights, the total to 34, making the instrument lighting and work instruction is more beautiful and striking. The double CAN bus communication technology, two independent CAN interface, can make digital bus information directly read and sensor signals directly. with Central electric junction box.





Specifications:




Tipper Dump Truck SINOTRUK LHD 336HP 10 wheels 30 - 40tons for Mining Industry
Model ZZ3257N3647B1
Drive Type 6×4
Engine

WD615.69 , 336HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW15710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3600+1350(mm)
Overall dimension 8375×2496×3450(mm)
Cargo body 5600×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1)Electric cab lift system, reduce labor intensity, facilitate vehicle maintenance.

2)low fuel consumption
3) strong enough engine

4)with all kinds of truck model, which can fulfil your requirement
5)the key parts adopt the world's top technology products
6)based on strong technical support and top level technology make the trucks with high

quality and more reliable

7)quick and efficient spare parts supply bring you more convenient

8)Optimized cargo body structure,light weight,high rigidity,large loading capacity

9)Using the high strength steel,it has long service life

10)Optimized the sealing structure has the better sealing effect.

11)Multiple box structures and device selections

12)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

running efficiency.

13)fast delivery time, we can arange production according to your needs exactly and

quickly

14) professional import and export dealing precedure, make customs clearance more high efficiency

15)competive price, cost-effective



Euro 2 Standard 10 Wheels Tipper Dump Truck 30 - 40 Tons For Loading Sand / Stones 0
